The Complete Guide to Modern Aluminum Sliding Doors: Style, Function, and Performance

This guide will walk you through everything you need to know about modern aluminum sliding doors, helping you select the perfect system for your next project.

Not Just a “Big Window”: The Dedicated Door System

A common misconception is that a sliding door is just an oversized sliding window. This could not be further from the truth.

High-quality sliding doors are engineered as “dedicated door systems”—never a window-derived unit. This means the structural design is specifically calculated to handle the heavy load of large glass panels and the stress of frequent daily entry and exit.

Why does this matter?
If a manufacturer simply enlarges a window profile to make a door, the result is often a sash that wobbles, rollers that wear out quickly, and a frame that may sag over time. A true sliding door system ensures sash stability and prevents sagging even at extreme heights.

Key Advantages of Aluminum Sliding Doors

Why is aluminum the material of choice for sliding doors in modern homes?

• Space Efficiency: The primary benefit of a sliding door is its footprint. Because the panels glide horizontally, they require zero operating space inside or outside the room. This allows you to place furniture closer to the opening, maximizing your interior layout.
• Strength and Durability: Top-tier systems utilize 6063-T66 aluminum. This high-strength alloy allows for slimmer frames that can still support heavy double or triple glazing. Unlike vinyl, which can warp in extreme heat, or wood, which requires constant maintenance, aluminum remains stable and durable for decades.
• Visual Connection: Modern sliding doors are designed to frame the view, not block it. With robust hardware systems, you can have larger glass panels and fewer vertical frames, creating a panoramic connection to the outdoors.

Choosing the Configuration: Tracks, Panels, and Screens

When engineering a sliding door opening, the “Track System” dictates not only how the door operates but also how wide it can open and how it handles ventilation.

The Double-Track System (Standard 2 or 4 Panels)

Often searched for as “standard sliding doors,” this is the most common configuration for residential patios. A fixed Double-Track architecture typically supports:

• 2-Panel Configuration (XO): One fixed panel, one sliding panel. Simple, effective, and cost-efficient.
• 4-Panel Configuration (OXXO): Two fixed outer panels with two center panels sliding apart. This creates a grand central opening perfect for dining areas.

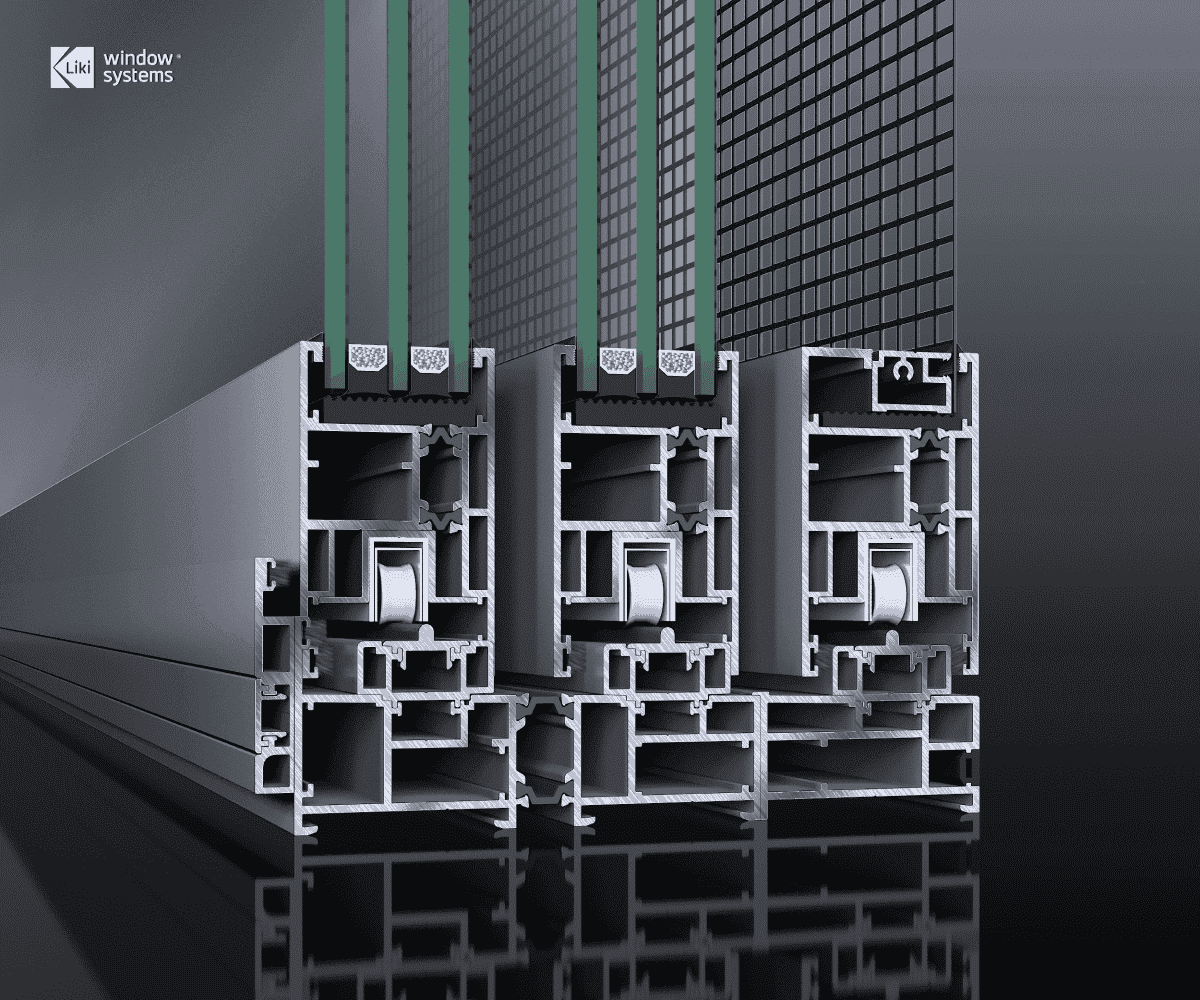

The Triple-Track System (Multi-Slide / Stacking Doors)

For homeowners who want to maximize the “open air” feeling, the Triple-Track system—often called a “Stacking Door”—is the ultimate solution.

Unlike a standard slider where only 50% of the opening is clear, a triple-track system allows three or more panels to slide and stack behind one another. This can open up to 66% of the doorway, creating a massive, uninterrupted passage for indoor-outdoor entertaining.

Don’t Forget the Screens: Integrated Mesh Solutions

In many regions, a sliding door is unusable without proper insect protection. However, generic aftermarket screens often look bulky and ruin the door’s aesthetic.

High-quality aluminum systems (like LIKI’s) feature integrated screen solutions compatible with both double and triple-track configurations. Depending on your needs, you can configure:

• High-Transparency Mesh: For maximum visibility and airflow while keeping insects out.
• Stainless Steel Security Mesh: A heavy-duty option that provides insect protection and acts as a security barrier, eliminating the need for unsightly bars or grilles.

These screens run on their own dedicated stainless-steel rail within the system, ensuring they glide just as smoothly as the heavy glass panels.

Thermal vs. Non-Thermal: Which Do You Need?

Performance is just as important as aesthetics. Sliding doors generally fall into two categories based on their insulation capabilities.

Non-Thermal Systems (For Mild Climates & Interiors)

If you live in a region with a mild climate, or if the door is being used as an internal partition (like dividing a sunroom from a living area), a non-thermal system is a cost-effective choice. These systems offer structural reliability and continuous EPDM sealing to keep out drafts and dust, but they utilize a standard aluminum structure without an internal thermal barrier.

Thermally Broken Systems (For Energy Efficiency)

For homes in areas with cold winters or hot summers, a thermally broken sliding door is essential. These systems feature a “thermal break”—a reinforced polyamide strip (such as Technoform®) inserted between the interior and exterior aluminum frames. This break stops heat from transferring through the metal, keeping your home warm in winter and cool in summer while meeting demanding energy standards.

The Importance of Hardware and Operation

The tactile experience of a sliding door comes down to its hardware. Look for systems that use premium load-controlled hardware (such as Roto). High-quality rollers ensure a smooth, silent glide and are designed to define the bearing path, preventing the door from jumping the track.

Handling the Weight: Manual vs. Electric

For clients seeking the most expansive views, size matters. However, large glass panels are inherently heavy. While our precision hardware makes manual operation smooth, for super-sized configurations, the physical weight can still be significant.

To address this, an electric auxiliary system may be recommended to assist with opening and closing, ensuring effortless operation for every family member. LIKI systems are engineered to support maximum single-panel dimensions of up to 2000mm x 3000mm (approx. 6.5ft x 10ft). This limit ensures that every door we manufacture remains structurally sound, safe, and operable for years to come.

Furthermore, the finish of the aluminum protects your investment. Premium coatings, like AkzoNobel® finishes, ensure that the color resists fading and chalking, even under harsh sunlight.

LIKI Recommended Solutions

At LIKI, we offer a strategic matrix of sliding solutions, categorized by thermal performance and loading capacity to meet your specific project needs. Here are our top recommendations based on common scenarios:

The Balanced Choice for Modern Homes

Series: 130 Thermally Broken Double-Track
For the standard family home that needs excellent insulation and reliable daily use, the 130 Series is the perfect fit. It combines thermal separation with a stable double-track design. It offers dependable air and water control suitable for multi-climate applications without the complexity of a heavy-duty system.

For Large Openings & Maximum Durability

Series: 205 Thermally Broken Triple-Track
When you have a wide architectural opening and need high energy performance, choose the 205 Series. This heavy-duty system supports multi-panel compositions and heavy glazing. It is designed for projects where structural stability and load capacity must be maintained alongside improved energy performance.

The Cost-Effective Engineering Solution

Series: 95 Entry-Level Double-Track
For large-scale projects or renovations where budget is a priority but reliability cannot be compromised, the 95 Series delivers. It is a non-thermal system designed for high-volume applications, offering standardized quality and smooth operation at a competitive price point.

The Ultimate Design Statement

Series: 220 Flagship Slim-Profile
For luxury residences demanding maximum transparency, the 220 Series is our flagship. It features a slim visible profile that allows for ultra-large glass panels. Uniquely, it offers architectural integration with flush floor track designs and concealed drainage, creating a barrier-free transition between indoors and outdoors.

Conclusion

Choosing the right sliding door is about balancing your climate needs, your opening size, and your design vision. Whether you need the rugged efficiency of the 95 Series or the refined elegance of the 220 Series, LIKI provides a dedicated, window-independent door platform for every modern residence.
